ENGINEERING EXCELLENCE & SAFETY

Our Services & Highway Infrastructure

MoRTH & IRC certified crash barriers, thermoplastic road markings, retro-reflective traffic signage, and certified road safety products for national highways and expressways.

Full-Spectrum Highway Contractor Services • Certified MoRTH Section 800 Compliant

MoRTH Section 811 • AASHTO M180 • IRC Compliant

Highway Safety Barriers

Crash Barriers & Guardrail Systems

Engineered to dissipate kinetic impact energy, prevent vehicle vaulting or median cross-overs, and redirect out-of-control vehicles safely along national highway corridors.

550 g/m² Zinc Hot-Dip Galvanized Coating

Fe 410 / Fe 510 High-Tensile Cold-Rolled Steel

Level H1 & H2 High Crash Containment

MoRTH 811 Certified Highway Standard

W-Beam Galvanized Steel Crash Barrier System

MoRTH 811

W-Beam System Highway Containment

Metal W-Beam Highway Crash Barrier System

Cold-rolled high-tensile mild steel W-Beam profiles (3.0mm / 2.67mm) with 550 g/m² hot-dip galvanized silver finish for rust and weather protection. Mounted on 150x75mm channel posts with spacer blocks and compatible with linear delineator systems to absorb collision energy and prevent crossover accidents.

Profile: 312mm × 83mm 550 g/m² Zinc Galvanized High-Tensile Mild Steel Zero Power / Low Maintenance

Enquire on WhatsApp

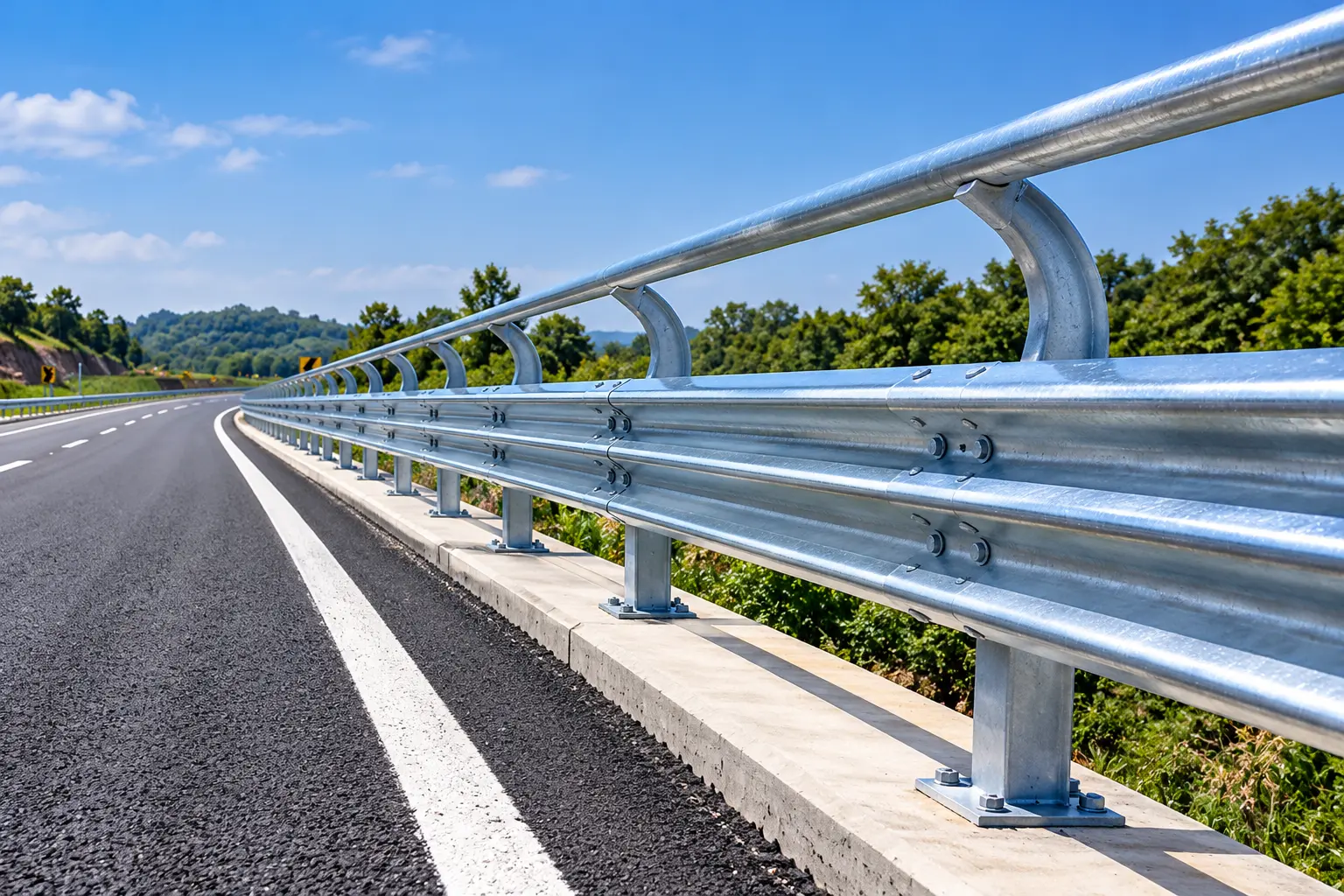

Thrie-Beam & Heavy-Duty Median Guardrail

High Containment

Thrie-Beam System Expressway Grade

Thrie-Beam & Heavy Median Guardrail System

Triple-corrugated heavy-gauge steel crash barrier designed for expressways, flyovers, bridge piers, and steep mountainous curves. Delivers superior containment (Level H1/H2) and high impact resistance to prevent heavy multi-axle commercial transport from vaulting over medians.

Triple Wave 506mm Width Tensile Strength ≥483 MPa Level H1/H2 Containment All-Weather Rust Resistance

Enquire on WhatsApp

Highway Installation, Curved Runs & Flared End Terminals

Turnkey Execution

End Terminals Site Execution

Corridor Runs & Energy-Absorbing Terminals

Turnkey site execution showcasing continuous kilometer alignment, hydraulic post driving, custom curve radius forming, and energy-absorbing fish-tail and bullnose terminal ends. Equipped with trapezoidal and linear guardrail reflectors for 24/7 highway visibility.

Fish-Tail / Bullnose Terminals Grade 8.8 Galvanized Fasteners Hydraulic Ramming Posts Linear Delineator Systems

Enquire on WhatsApp

IRC:35:2015 • MoRTH Section 803 • BS 3262 Certified

Retro-Reflective Striping

Thermoplastic Road Marking Solutions

Hot-applied thermoplastic marking compound formulated with synthetic resins, premium pigments, and intermixed retroreflective glass beads for superior daytime clarity and nighttime visibility.

180°C - 200°C Hot-Melt Application Temp

>75% Luminance High Whiteness Index

<15 Mins Curing Fast Traffic Release

≥45 - 55 BPN Skid Resistance Value

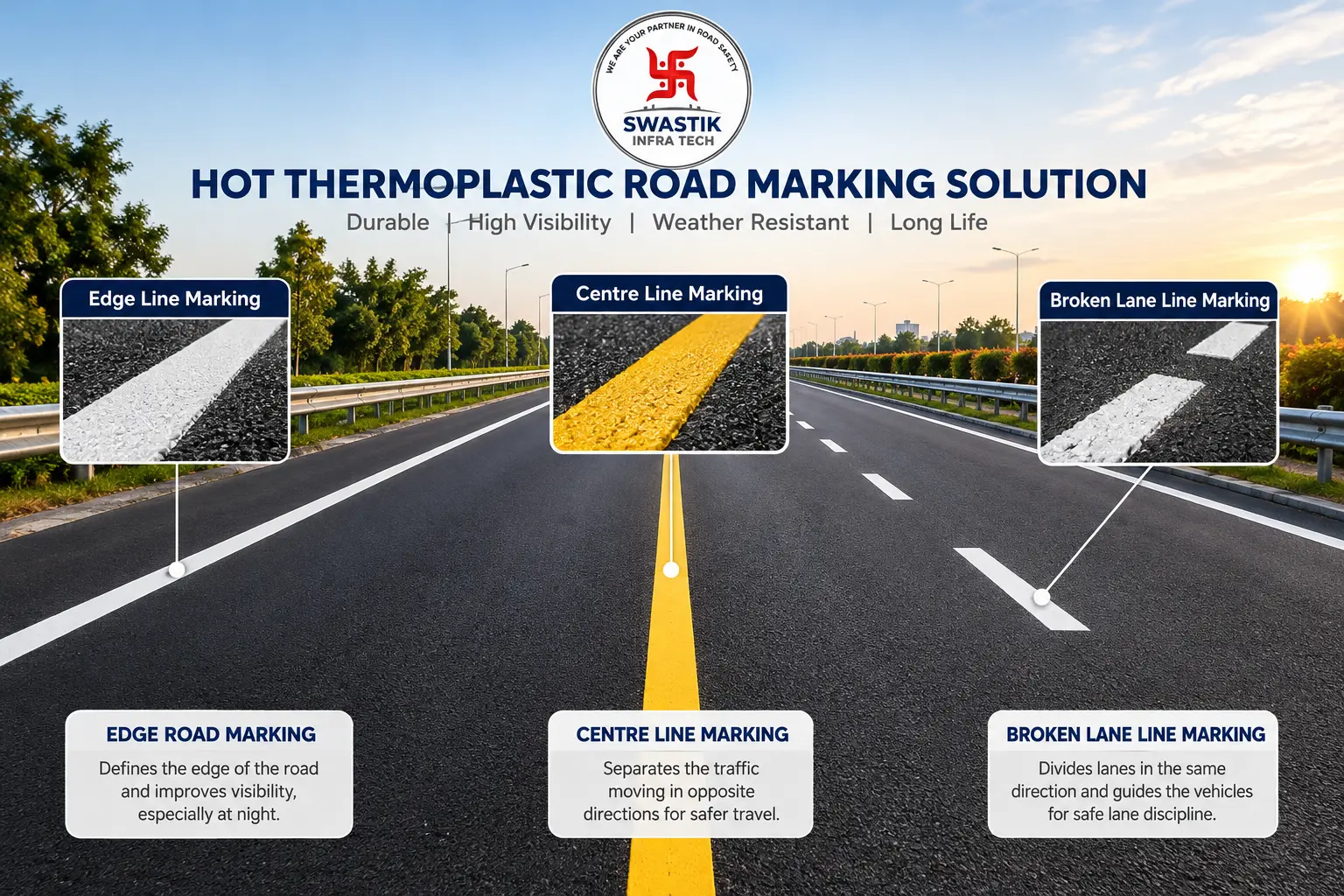

Hot-Applied Thermoplastic Longitudinal Edge & Lane Markings

MoRTH 803

MoRTH Section 803 Hot-Melt Screed

Hot-Applied Thermoplastic Road Markings & Edge Lines

High-purity thermoplastic powder compound (99% pure pigment with synthetic resin, EVA copolymer, and mineral extenders) screed-applied at 180°C–200°C. Delivers immediate bituminous bonding, 12-month dry shelf life, and sharp 2.5mm line edges resistant to heavy multi-axle traffic abrasion.

2.5mm Screed Thickness 99% Purity Pigment Powder 12 Months Powder Shelf Life IRC:35:2015 & MoRTH 803

Enquire on WhatsApp

High-Index Retro-Reflective Glass Beads

Night Optics

MoRTH Type 1 & 2 Optical Spheres

High-Index Retro-Reflective Micro Glass Beads

High-clarity optical glass spheres blended as an intermix (min 20% by weight) and pressure drop-on (250 g/m²) over molten thermoplastic. Returns vehicle headlight rays back to the driver's eye, ensuring exceptional road guidance during rainy nights and low visibility conditions.

Roundness: ≥80% True Spheres Refractive Index: ≥1.50 Dual Action: Intermix + Drop-On MoRTH 803 & BS 6088 Certified

Enquire on WhatsApp

Anti-Skid Thermoplastic Zebra Crossings

Pedestrian Safety

High-Friction Screed Crosswalk Safety

Anti-Skid Thermoplastic Zebra Crossings

Heavy 3.0mm–4.0mm pedestrian crossing lines reinforced with calcined bauxite aggregate to provide an exceptional skid resistance value (≥55 BPN). Formulated to withstand intense urban braking friction, preventing tyre slippage in dry and wet conditions.

3.0mm - 4.0mm Heavy Screed Calcined Bauxite Infused Skid Resistance ≥55 BPN High Braking Durability

Enquire on WhatsApp

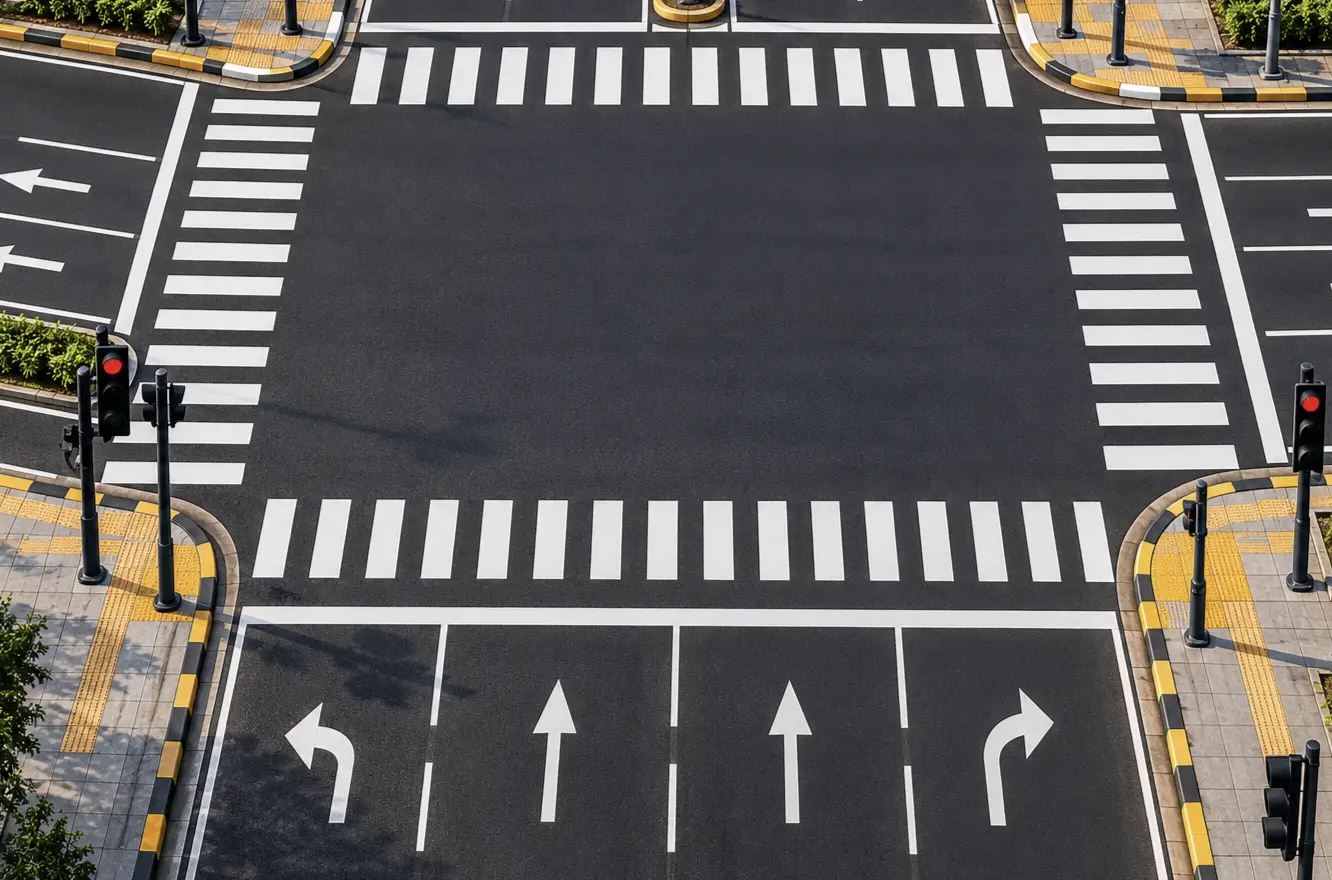

Intersection Crosswalks, Stop Lines & Turn Arrows

Intersections

Urban Intersections Directional Delineation

Intersection Crosswalks, Stop Lines & Turn Arrows

Precision transverse stop lines, pedestrian refuge zone hatching, chevron lane channelization, and directional turning arrows. Formulated with UV non-yellowing aliphatic resins and hydrocarbon binders to resist motor engine oil, fuel spills, and heavy surface shear.

Precision Transverse Screed UV Non-Yellowing Binder High Oil & Fuel Resistance Sharp Edge Masking

Enquire on WhatsApp

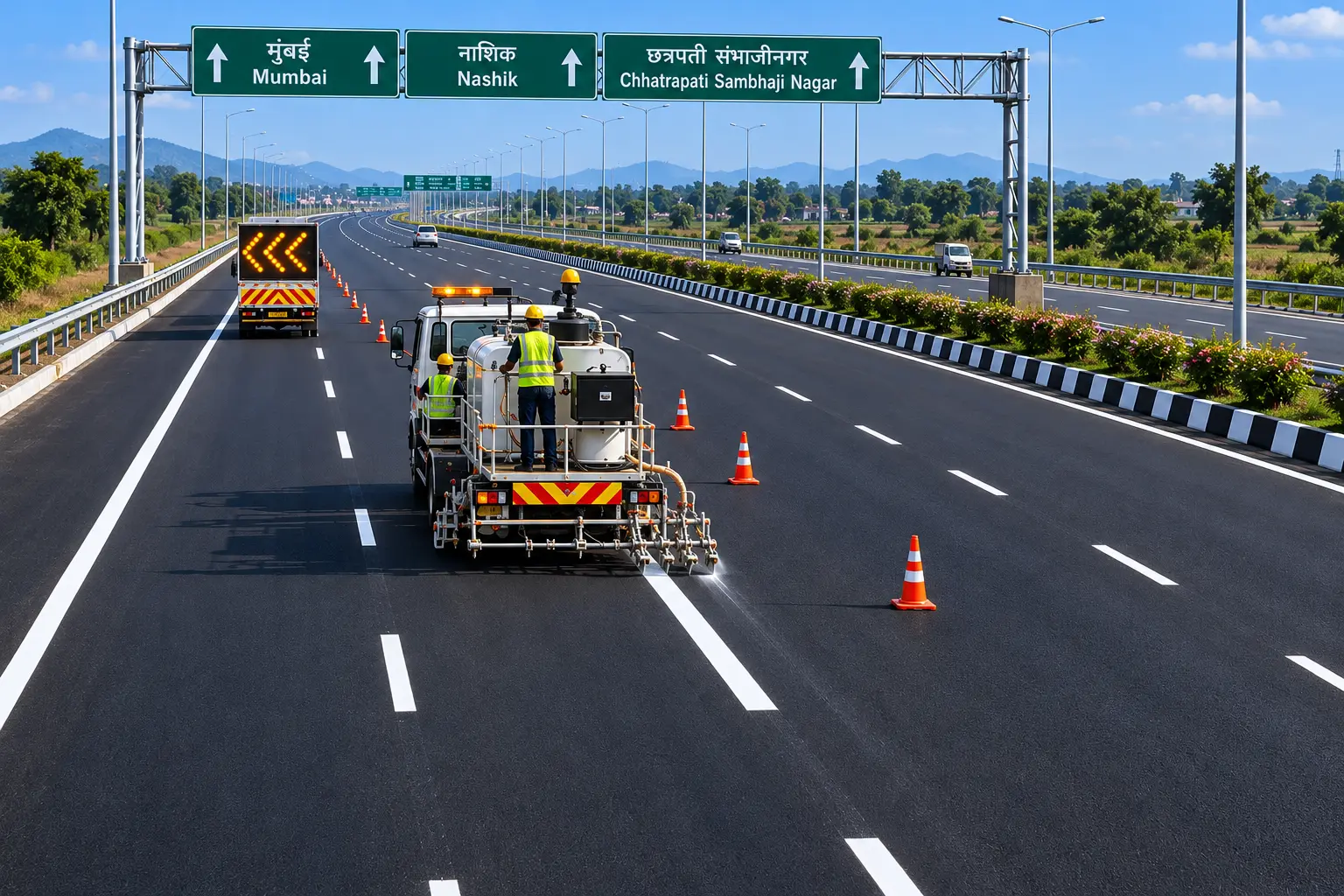

Multi-Lane Expressway Striping Execution

Automated Fleet

Highway Fleet Turnkey Contracting

Multi-Lane Expressway Striping Execution

Turnkey high-speed highway striping execution utilizing automated pre-heater boilers and mechanized screed extrusion machines. Features automated drop-on bead dispensers and laser guidance to achieve up to 15,000 meters per day with strict MoRTH Section 803 thickness tolerance.

Mechanized Extrusion Fleet Up to 15,000 Mtrs / Day Automated Bead Metering Turnkey Highway Handover

Enquire on WhatsApp

IRC:67:2012 • MoRTH Section 801 & 802 • ASTM D4956

Guidance & Regulatory Boards

Retro-Reflective Traffic Signage & Gantries

High-performance microprismatic retroreflective traffic signs on aluminum composite panels (ACP) and structural steel trusses, ensuring high visibility for highway navigation by day and night.

Type IV & XI Microprismatic Sheeting Grade

3mm / 4mm ACP Aluminum Composite Substrate

7 - 10 Years Photometric Outdoor Warranty

180 km/h Wind Resistance Engineering

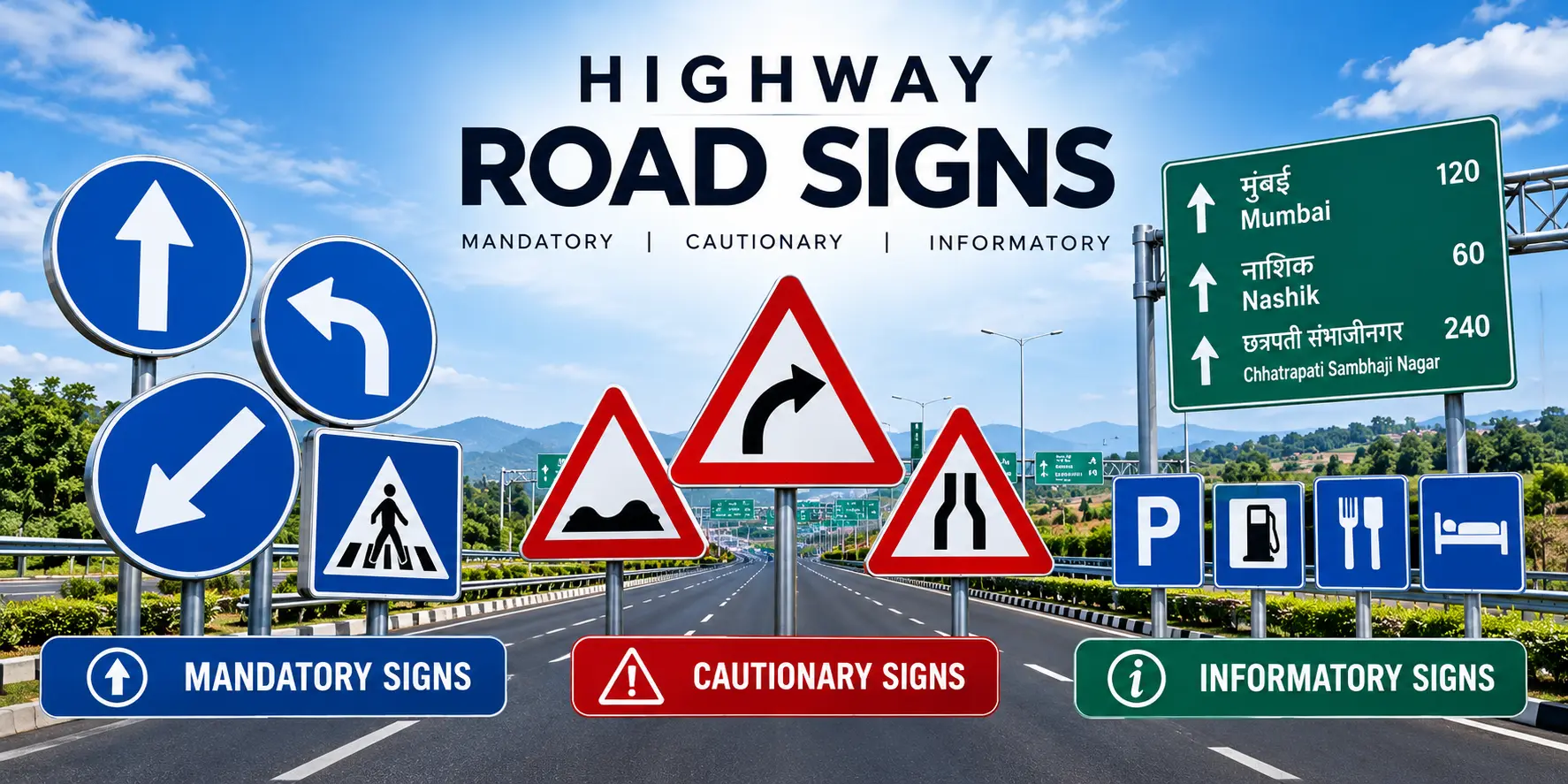

Mandatory, Cautionary & Informatory Highway Signboards

IRC:67:2012

IRC:67:2012 ACP Signboards

Mandatory, Cautionary & Informatory Highway Signs

Precision CNC-routed 3mm / 4mm ACP (Aluminum Composite Panel) signboards overlaid with ASTM D4956 microprismatic retroreflective sheeting and UV-stabilized inks. 100% waterproof and rustproof, mounted on hot-dip galvanized or powder-coated structural posts.

3mm / 4mm ACP Substrate 100% Rust & Waterproof IRC:67 Dimensional Standard Powder-Coated / GI Posts

Enquire on WhatsApp

High-Intensity Prismatic (HIP) Retroreflective Sheeting

Type IV / XI

ASTM D4956 Microprismatic Sheeting

High-Intensity Prismatic (HIP) Sheeting (Type IV & XI)

Premium microprismatic retroreflective sheeting delivering superior wide-angle angularity and optical return over 300 meters. Features heavy pressure-sensitive acrylic adhesive, UV-shielded surface layer, and a 7 to 10-year outdoor field performance warranty.

ASTM D4956 Type IV & XI 7 - 10 Year Field Warranty High-Tack Acrylic Adhesive Wide Observation Angles

Enquire on WhatsApp

Overhead Cantilever Trusses & Highway Gantry Signs

Heavy Trusses

IS:2062 Heavy Trusses Overhead Portals

Cantilever Trusses & Overhead Highway Gantries

Heavy structural steel tubular and hollow-section truss portal frames fabricated as per IS:2062 and hot-dip galvanized (min 610 g/m² zinc). Spans up to 36 meters across multi-lane expressways, engineered for aerodynamic wind loads up to 180 km/h with zero power consumption required.

IS:2062 Fabricated Trusses Hot-Dip Galvanized 610 g/m² 180 km/h Wind Resistance Spans Up to 36 Meters

Enquire on WhatsApp

MoRTH Approved • Active & Passive Traffic Safety Devices

Delineation & Calming Accessories

Highway Road Safety Products

Certified tactical road studs, solar cat-eyes, flexible guide posts, modular rubber speed humps, and safety barriers engineered to prevent accidents and channelize motorway traffic.

30 - 40 Tons Heavy Commercial Axle Load

IP68 Solar LED >1,000m Active Fog Visibility

100% Rebound Spring-Back Polyurethane

UV & Oil Resistant Virgin Engineered Polymers

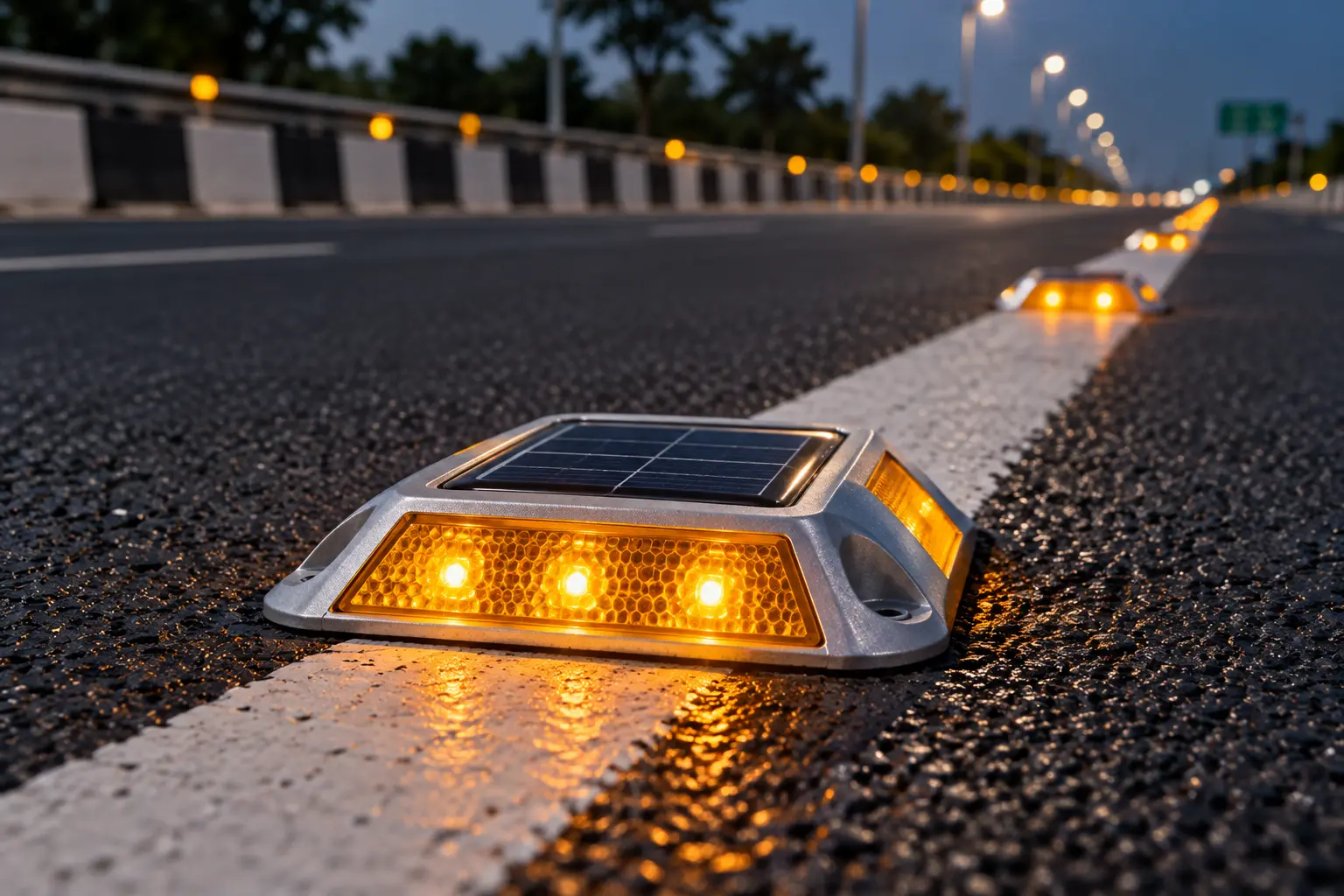

Solar-Powered Active LED Road Studs

Active Solar

IP68 Active Solar Self-Charging LED

Solar-Powered Active LED Road Studs (Solar Cat-Eyes)

Heavy-duty aluminum alloy housing with monocrystalline solar panel, supercapacitor power bank, and 6 ultra-bright flash LEDs. Delivers >1,000m active visibility through dense fog and torrential rain with >72 hours autonomy on a single charge and 30-ton compression rating.

6 Ultra-Bright Flash LEDs >1,000m Fog Visibility 30-Ton Axle Load Rating IP68 Submersible Waterproof

Enquire on WhatsApp

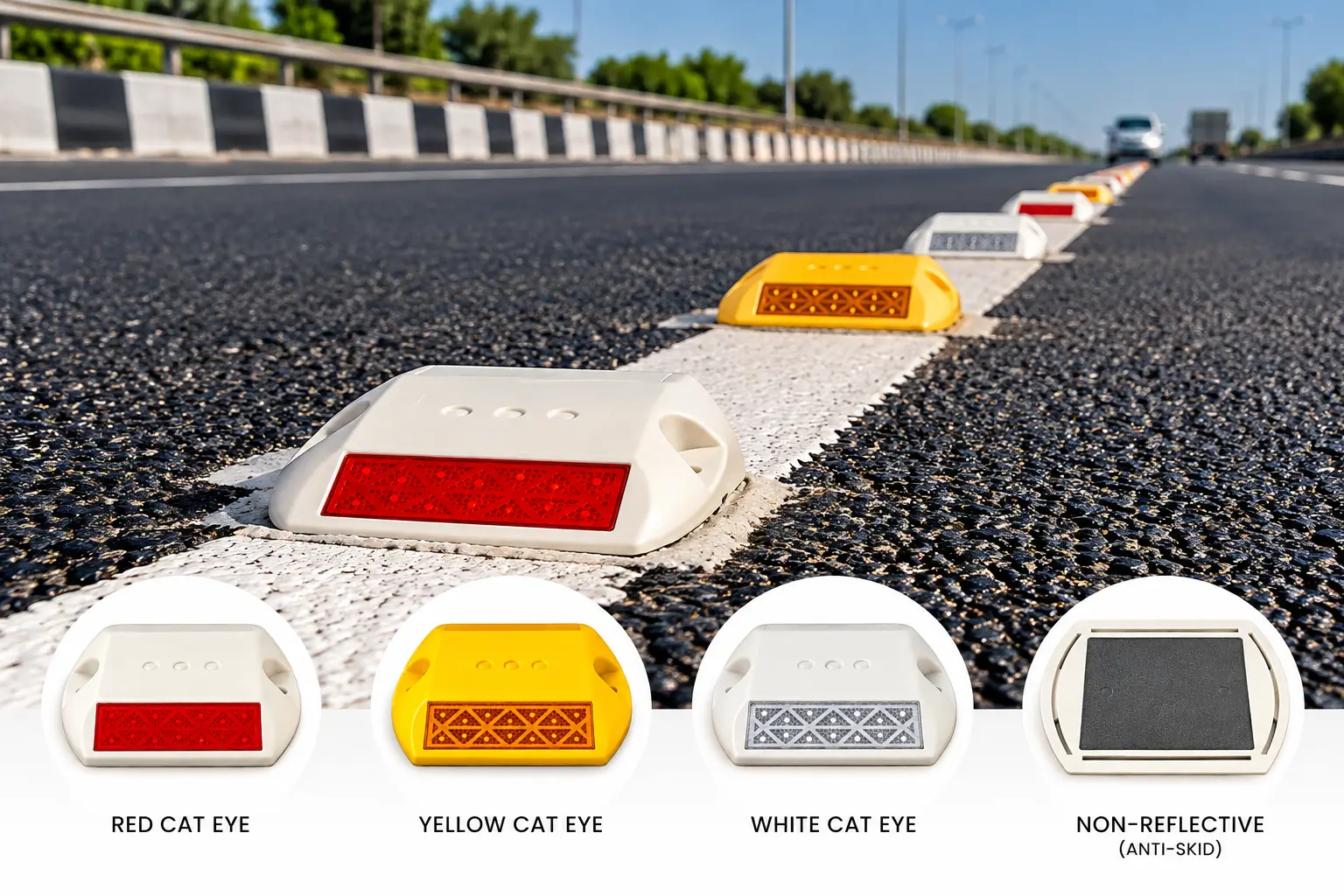

Heavy-Duty ABS Raised Pavement Markers

Passive RPM

MoRTH Type RPM Passive Cat-Eyes

Heavy-Duty ABS Raised Pavement Markers (Cat-Eyes)

Standard 100×100×20mm heavy-duty ABS body road studs equipped with dual acrylic prismatic retroreflective lenses in amber, red, or white. Anchored via epoxy bonding or bottom shank, providing brilliant zero-power night guidance and tactile rumble feedback to alert drifting drivers.

Standard 100×100×20mm ABS Dual PMMA Prismatic Lenses Zero Electrical Power Audible Acoustic Rumble

Enquire on WhatsApp

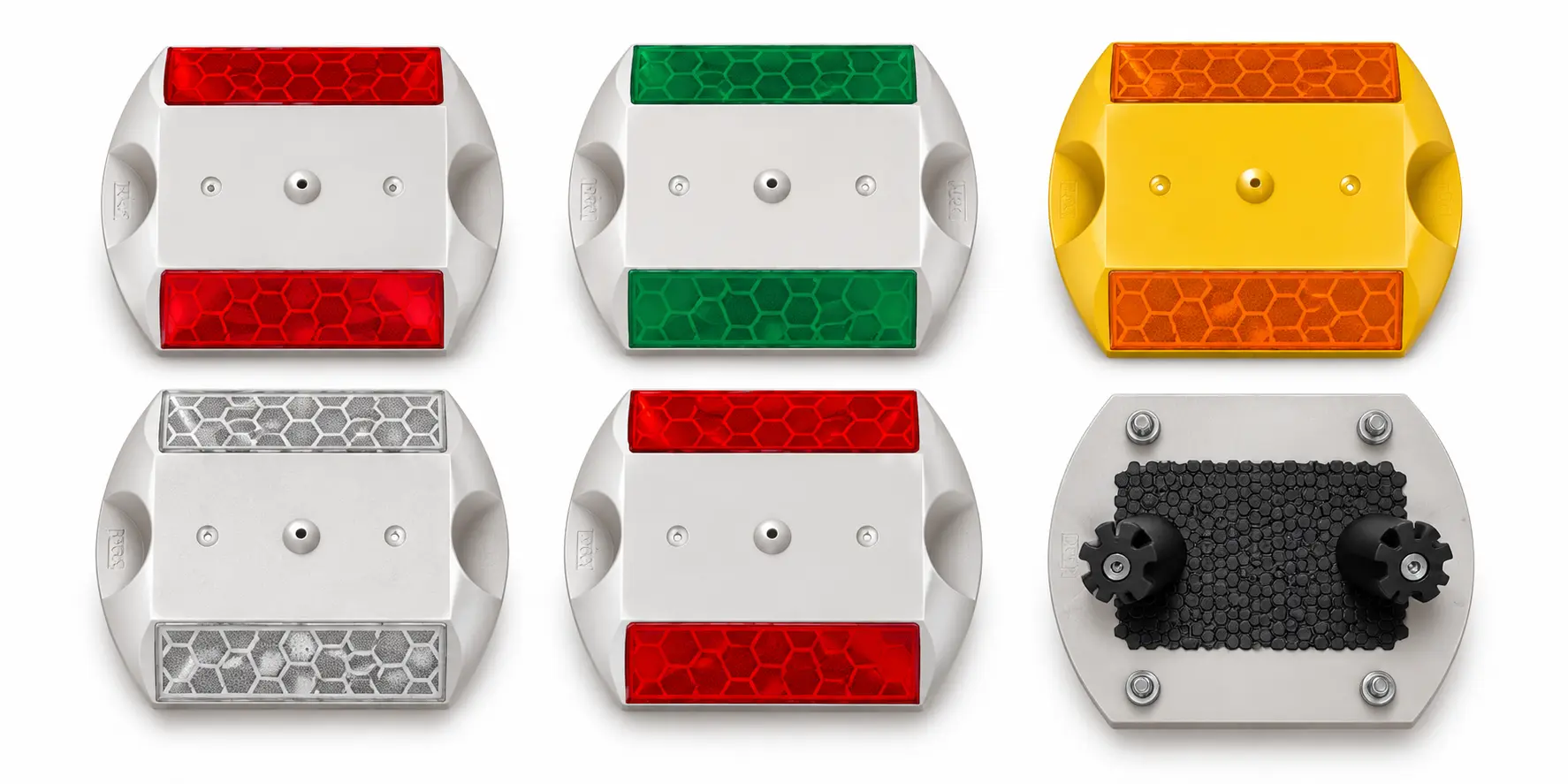

Die-Cast Aluminum Heavy-Duty Road Studs

Heavy Axle

ADC12 Alloy Shank Anchored

Die-Cast Aluminum Road Studs (Type-1)

High-pressure die-cast ADC12 aluminum alloy studs with integral cylindrical anchoring shank and twin high-reflectivity acrylic lenses. Built to withstand continuous hammering by multi-axle freight vehicles exceeding 250 kN (>25 metric tons) compressive resistance, impervious to diesel, oil, and de-icing salts.

Die-Cast ADC12 Aluminum Compressive Force >250 kN Integral Ground Anchor Shank Oil, Salt & Weather Proof

Enquire on WhatsApp

360° Omnidirectional Prismatic Highway Studs

360° Optics

360° Omnidirectional All-Angle Guidance

360° Omnidirectional Prismatic Highway Studs (Type-2)

Toughened glass or reinforced polycarbonate dome studs delivering continuous 360-degree all-angle optical retro-reflection. Specifically engineered for complex traffic nodes including roundabout aprons, sharp expressway curves, channelizing islands, and median noses.

Continuous 360° Optical Return Toughened PC / Solid Glass Roundabout & Median Geometry IK10 High Impact Resistance

Enquire on WhatsApp

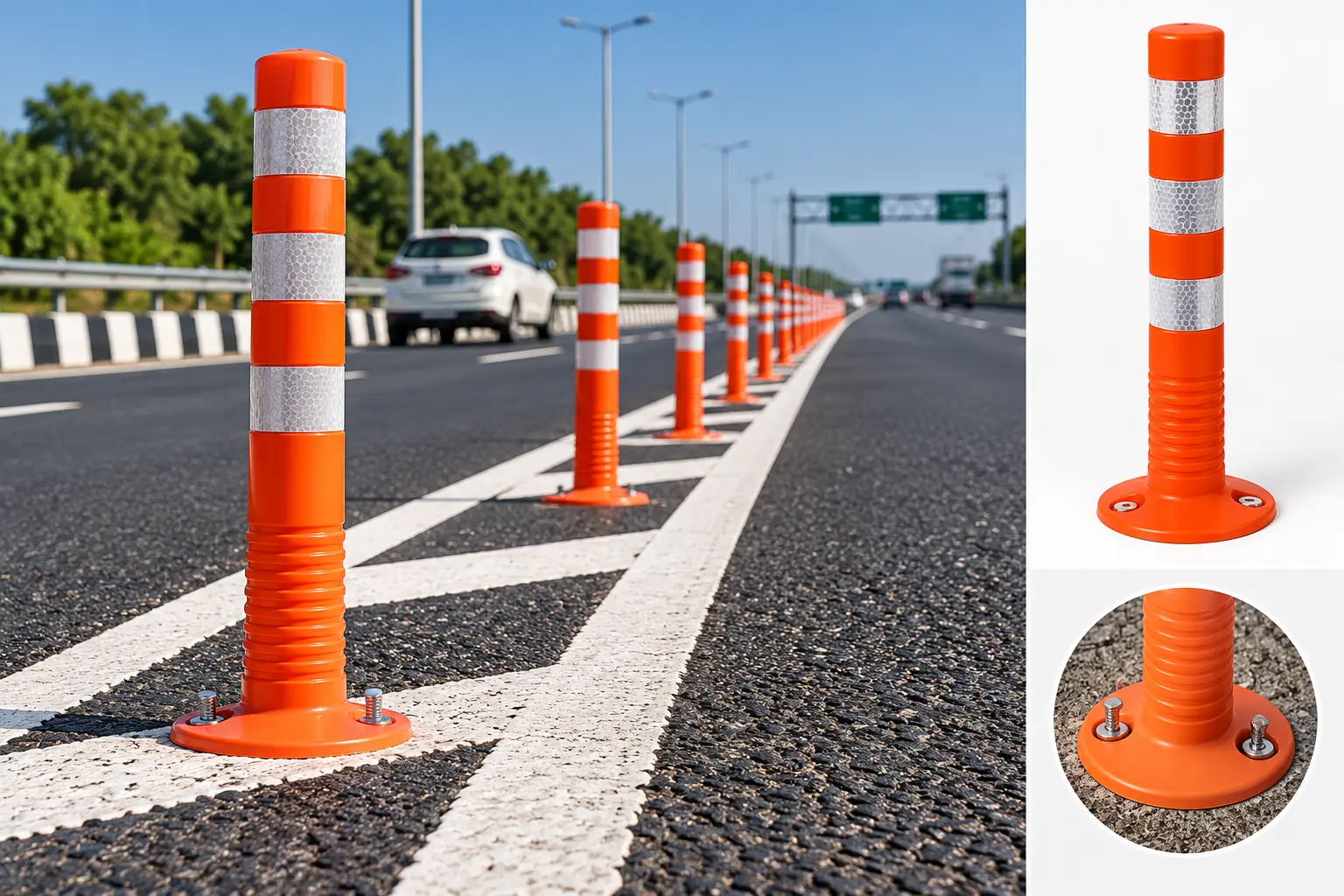

Spring-Back Flexible Delineator Guide Posts

Spring-Back

Spring-Back TPU Impact Delineation

Flexible Spring-Back Delineator Guide Posts

High-grade elastic polyurethane (TPU) guide posts (750mm/800mm height) that bend up to 90° upon vehicle tire impact and rebound 100% to vertical without damage. Fitted with 3 high-intensity prismatic reflective collars and a secure 3-bolt road anchor base. Also supports 600mm / 76 OD mild steel pipe delineators.

750mm / 800mm Height (TPU) 100% Spring-Back Recovery 3 High-Intensity Bands 3-Bolt Heavy Anchor Flange

Enquire on WhatsApp

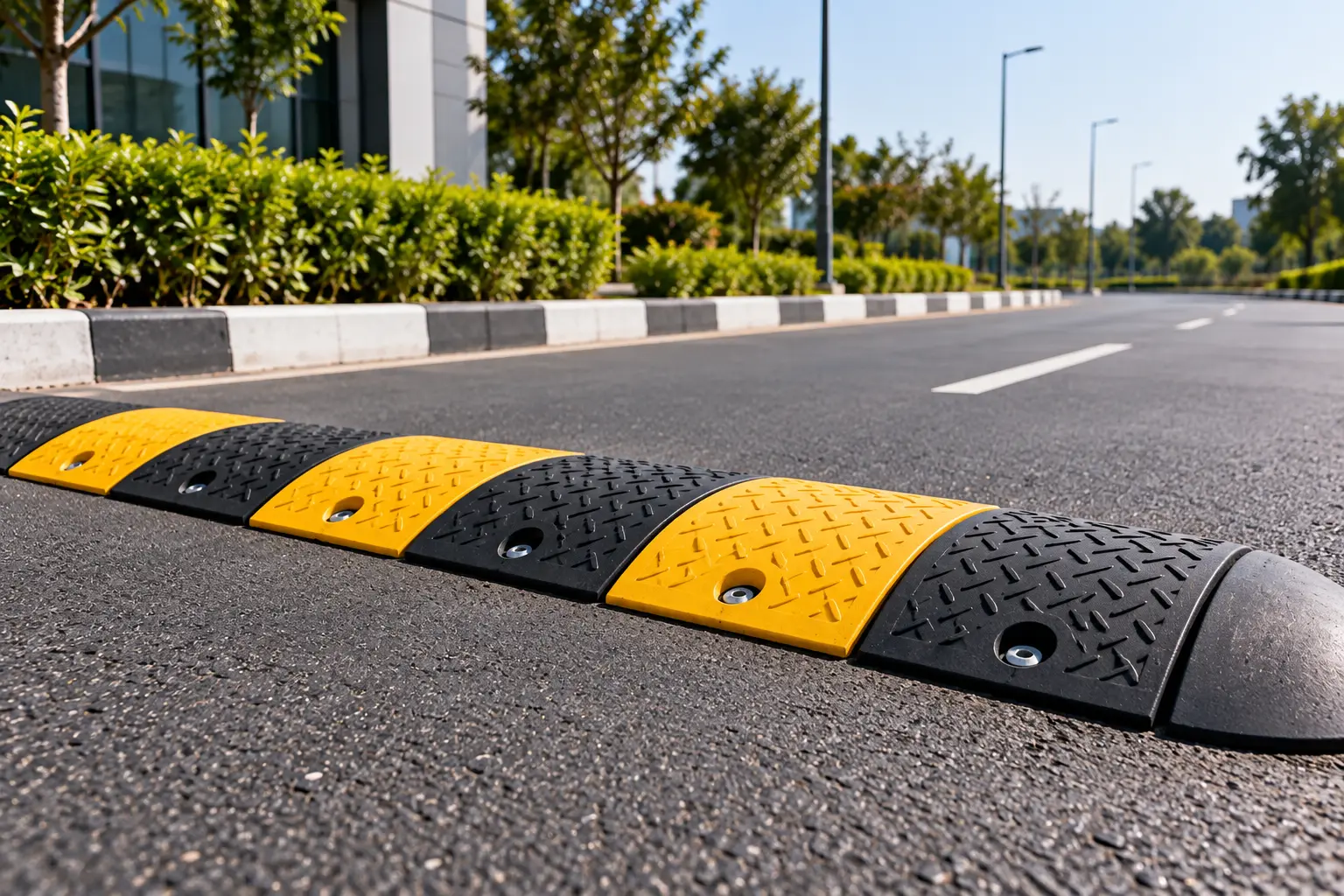

Heavy-Duty Modular Rubber Speed Humps

Traffic Calming

Modular Calming Vulcanized Rubber

Modular Rubber Speed Humps & End Caps

High-density vulcanized rubber modular segments (standard 250×350×50mm / 75mm heavy profile) in alternating high-contrast yellow and black. Molded with reflective glass elements, engineered to calm vehicle speeds safely while carrying multi-axle axle loads up to 40 tons without cracking.

250×350×50mm / 75mm Sections 100% Vulcanized Rubber 40-Ton Axle Load Rating Embedded Reflective Glass Beads

Enquire on WhatsApp

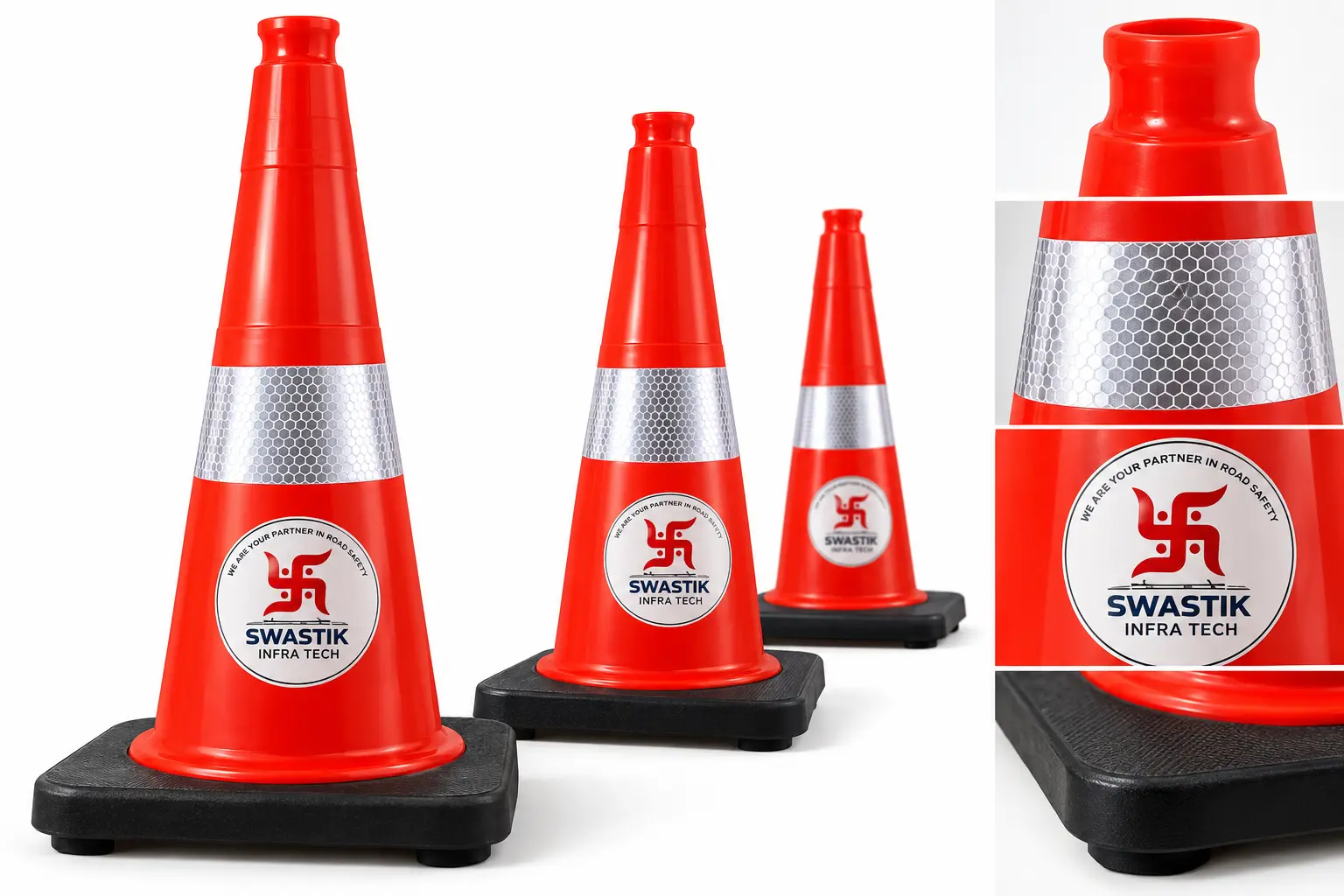

Heavy-Base PVC Traffic Safety Cones

Work-Zone

Work-Zone Diverter Flexible PVC

Heavy-Base PVC Traffic Safety Cones

UV-stabilized virgin fluorescent orange PVC body (750mm / 1000mm) fitted onto an interlocking heavy recycled rubber weighted base that resists displacement from high-speed highway wind vortices. Features 180° twistable rebound and wide Class R2 microprismatic reflective sleeves.

750mm / 1000mm Heights Heavy Recycled Rubber Base Class R2 Reflective Collar 180° Twistable Rebound

Enquire on WhatsApp

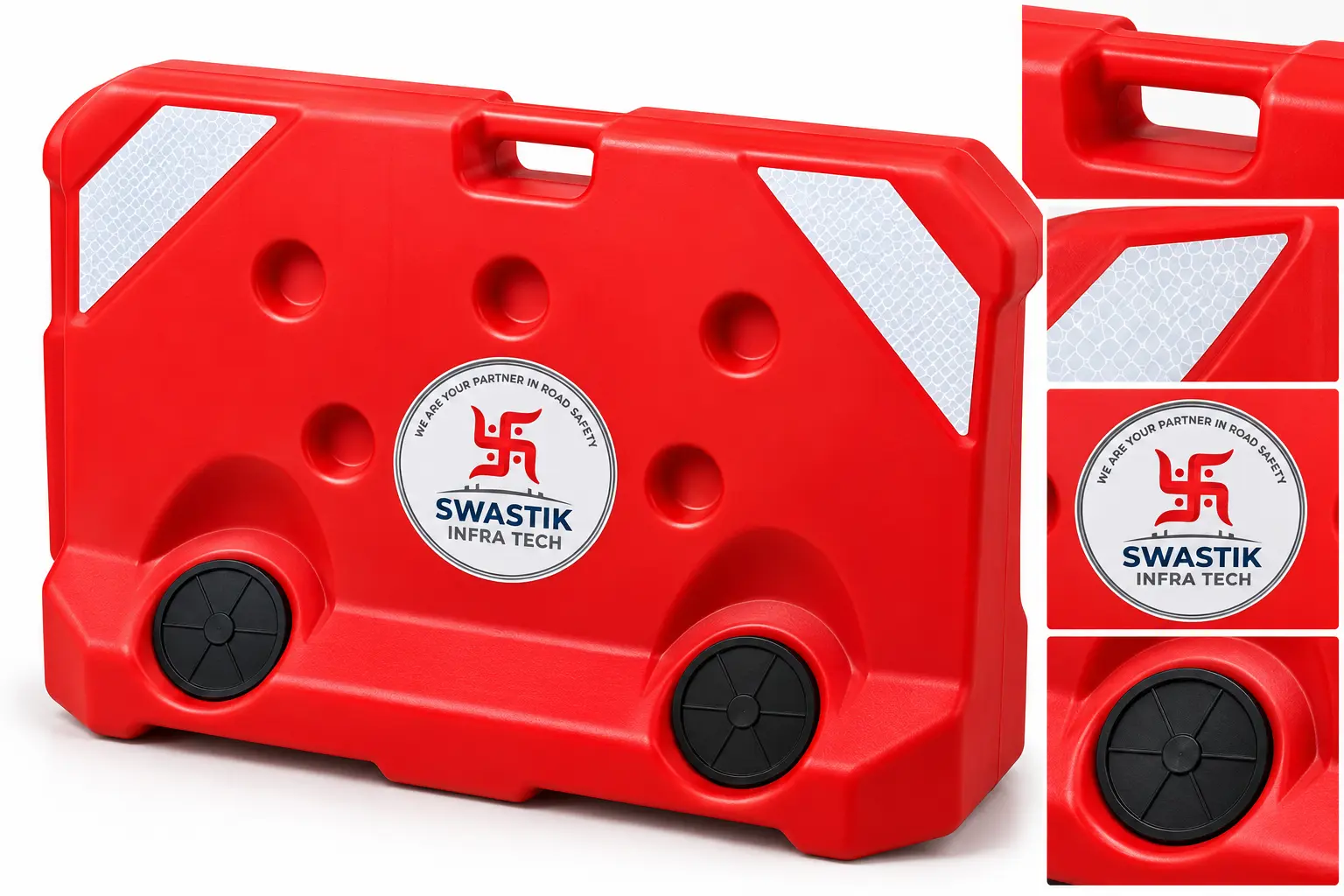

Interlocking Water & Sand Filled Traffic Barriers

Work-Zone Wall

HM-HDPE Polymer Ballast Barricades

Interlocking Water & Sand Filled Barriers

Rotomolded virgin HM-HDPE polymer road safety barriers featuring an integrated male-female pin interlocking system. Holds 100 to 150 kg of water or sand ballast to create a stable, energy-dissipating continuous safety perimeter for construction diversions and highway lane separation.

Virgin UV-Treated HM-HDPE Male-Female Interlocking Pin 100 - 150 Litre Ballast Weight High-Visibility Red & White

Enquire on WhatsApp
